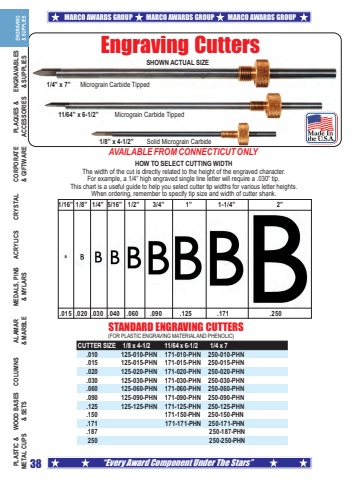

“Every Award Component Under The Stars”MARCO AWARDS GROUPMARCO AWARDS GROUPMARCO AWARDS GROUPEQUIPMENTCRYSTALACRYLICSCOLUMNSENGRAVABLES& SUPPLIESCORPORATE& GIFTWAREMEDALS, PINS& MYLARSWOOD BASES& SETSPLASTIC &METALCUPSPLAQUES &ACCESSORIESALAMAR& MARBLE381/16” 1/8” 1/4” 5/16” 1/2”3/4” 1” 1-1/4”2”.015 .020 .030 .040 .060 .090 .125 .171.250Engraving CuttersSHOWN ACTUAL SIZE1/4” x 7” Micrograin Carbide Tipped11/64” x 6-1/2” Micrograin Carbide Tipped1/8” x 4-1/2” Solid Micrograin CarbideHOW TO SELECT CUTTING WIDTHThe width of the cut is directly related to the height of the engraved character.For example, a 1/4” high engraved single line letter will require a .030” tip.This chart is a useful guide to help you select cutter tip widths for various letter heights.When ordering, remember to specify tip size and width of cutter shank.AVAILABLE FROM CONNECTICUT ONLYSTANDARD ENGRAVING CUTTERS(FOR PLASTIC ENGRAVING MATERIAL AND PHENOLIC) CUTTER SIZE 1/8 x 4-1/2 11/64 x 6-1/2 1/4 x 7 .010 125-010-PHN 171-010-PHN 250-010-PHN .015 125-015-PHN 171-015-PHN 250-015-PHN .020 125-020-PHN 171-020-PHN 250-020-PHN .030 125-030-PHN 171-030-PHN 250-030-PHN .060 125-060-PHN 171-060-PHN 250-060-PHN .090 125-090-PHN 171-090-PHN 250-090-PHN .125 125-125-PHN 171-125-PHN 250-125-PHN .150171-150-PHN250-150-PHN .171171-171-PHN250-171-PHN .187250-187-PHN250250-250-PHN
